Docker Compose部署RocketMQ和控制中心

运维之牛马 2025-07-13 12:01:03
简介Docker Compose部署RocketMQ和控制中心

最近单位有个应用需要上RocketMQ，考虑到资源不是特别充足且该应用重要性分级不高，打算采用Docker Compose方式单机部署。让我们一起来看看该过程中有哪些坑💥💥

创建RocketMQ相关目录和文件

创建持久化日志和数据目录

#namesrv的日志目录
mkdir -p /data/rocketmq/namesrv/logs
#broker的日志、数据、配置文件目录
mkdir -p /data/rocketmq/broker/{conf,logs,store}

创建broker.conf配置文件

brokerClusterName = DefaultCluster
brokerName = broker-a
brokerId = 0
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
# IP设置为主机IP
brokerIP1=192.168.124.80
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
waitTimeMillsInSendQueue=1000
#设置namesrv地址，建议不做修改
namesrvAddr=rmqnamesrv:9876
traceTopicEnable=true

编排docker

编排docker-compose.yaml

version: '3.8'
services:
  rmqnamesrv:
    image: apache/rocketmq:4.7.1
    container_name: rmqnamesrv
    ports:
      - 9876:9876
    restart: always
    volumes:
      - /data/rocketmq/namesrv/logs:/home/rocketmq/logs
    environment:
      JAVA_OPT: -server -Xms256m -Xmx512m -Xmn128m -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m
    command: ["sh","mqnamesrv"]
    #看环境需求，是使用默认网络模式还是host模式
    #network_mode: "host"

  broker:
    image: apache/rocketmq:4.7.1
    container_name: rmqbroker
    ports:
      - 10909:10909
      - 10911:10911
      - 10912:10912
    restart: always
    volumes:
      - /data/rocketmq/broker/logs:/home/rocketmq/logs
      - /data/rocketmq/broker/store:/home/rocketmq/store
      - /data/rocketmq/broker/conf/broker.conf:/home/rocketmq/rocketmq-4.7.1/conf/broker.conf
    depends_on:
      - 'rmqnamesrv'
    environment:
      JAVA_OPT: -server -Xms256m -Xmx512m -Xmn128m -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m
    command: ["sh","mqbroker","-c","/home/rocketmq/rocketmq-4.7.1/conf/broker.conf"]
    #network_mode: "host"

  rmqdashboard:
    image: apacherocketmq/rocketmq-dashboard:latest
    container_name: rocketmq-dashboard
    ports:
      - 8081:8080
    restart: always
    depends_on:
      - 'rmqnamesrv'
    environment:
      - JAVA_OPTS= -Xms256M -Xms512M -Xmn128M -Drocketmq.namesrv.addr=rmqnamesrv:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false
    #network_mode: "host"

如果使用了host网络模式，broker.conf配置文件的namesrvAddr=rmqnamesrv:9876可以设置为namesrvAddr=主机IP:9876

启动RocketMQ

docker compose up

docker compose分为V1和V2版本，独立安装的V1和V2版本使用docker-compose方式启动，插件安装的V2版本使用’docker compose’方式启动

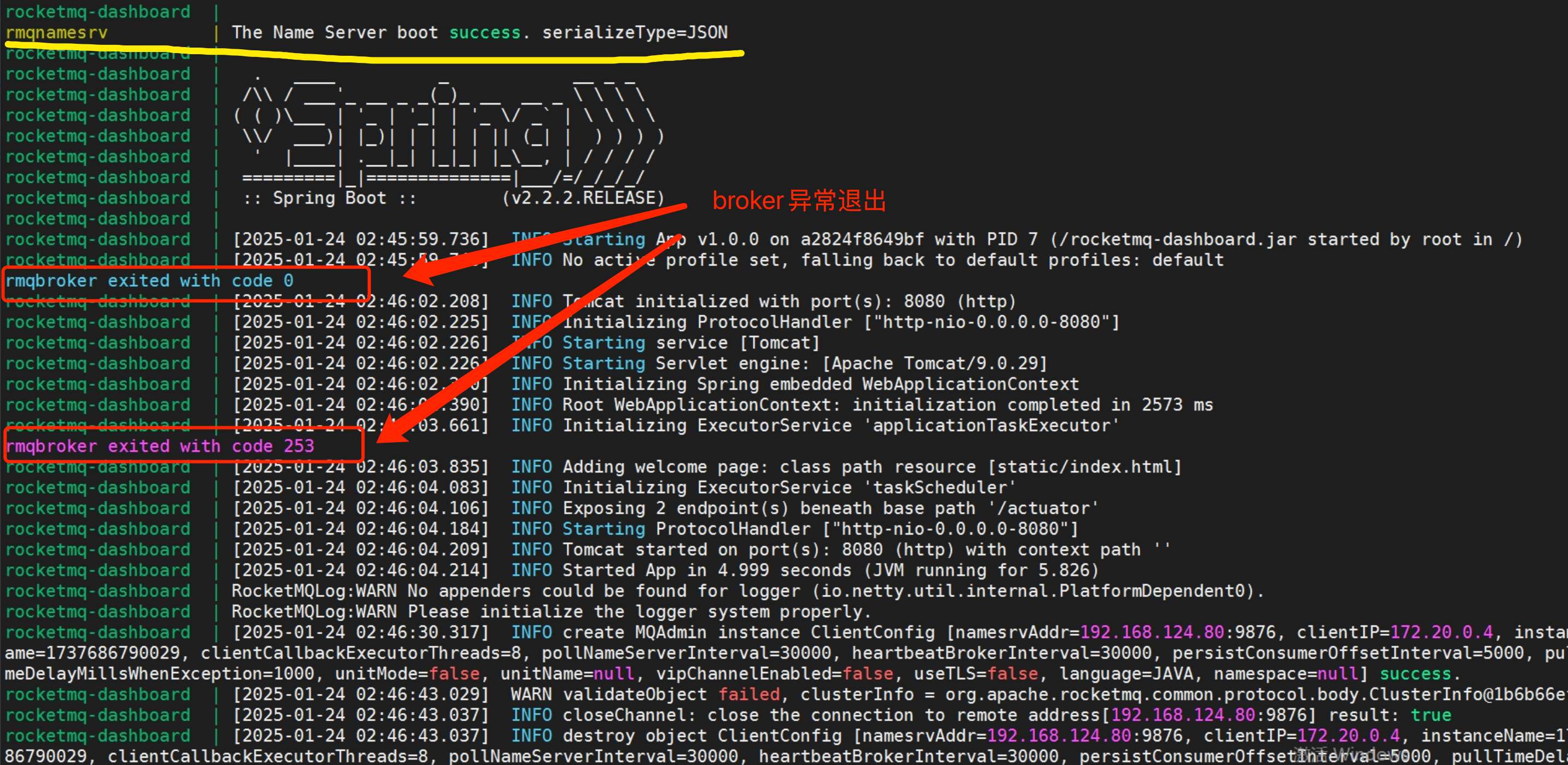

报错

好了，现在坑💥来了


可以看到namesrv启动成功，但是broker异常退出，并且没有任何日志,导致后面有依赖关系的dashboard连接broker也出现异常。

落坑

docker compose启动指定container
因为该docker-compose.yaml文件有3个container且有依赖关系，为方便排错，暂时去掉依赖关系，并只启动broker container

version: '3.8'
services:
  rmqnamesrv:
  ...
  broker:
  ...
#    depends_on:
#      - 'rmqnamesrv'
    environment:
      JAVA_OPT: -server -Xms256m -Xmx512m -Xmn128m -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m
    command: ["sh","mqbroker","-c","/home/rocketmq/rocketmq-4.7.1/conf/broker.conf"]

  rmqdashboard:
  ...

启动后错误同上。

docker compose up broker

直接使用docker run方式启动

docker run    --name rmqbroker   --restart always   -p 10909:10909   -p 10911:10911   -p 10912:10912   -e "JAVA_OPT=-server -Xms256m -Xmx512m -Xmn128m -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m"   -v /data/rocketmq/broker/logs:/home/rocketmq/logs   -v /data/rocketmq/broker/store:/home/rocketmq/store   -v /data/rocketmq/broker/conf/broker.conf:/home/rocketmq/rocketmq-4.7.1/conf/broker.conf   apache/rocketmq:4.7.1   sh mqbroker -c /home/rocketmq/rocketmq-4.7.1/conf/broker.conf

果然，还是一样的错误且没有日志。在求助搜索引擎后也没有找到合适的解决办法。

上大招💘，求助deepseek！

  1. 配置 Docker Compose 日志记录
  2. 强制显示实时日志
  3. 捕获容器退出时的状态
  4. 启用 Docker 调试日志
  5. 手动调试容器启动过程

逐一按照最强AI的思路，在最后的手动调试启动过程中发现了端倪（填坑耗时6️⃣小时）

爬坑

  1. 启动容器，但不启动broker
docker run -it
  --name rmqbroker-debug
  -v /data/rocketmq/broker/logs:/home/rocketmq/logs
  -v /data/rocketmq/broker/store:/home/rocketmq/store
  -v /data/rocketmq/broker/conf/broker.conf:/home/rocketmq/rocketmq-4.7.1/conf/broker.conf
  apache/rocketmq:4.7.1
  sh -c "tail -f /dev/null"

这里我们在dockr启动后，不执行启动mqbroker的命令，只保持容器运行

成功启动，没有之前的异常退出和反复重启等故障，见到曙光啦🌥️！从目前来看，应该是之前执行启动mqbroker时出错了

  1. 进入容器手动执行命令
#进入容器
docker exec -it rmqbroker-debug bash
# 手动执行 Broker 启动命令
sh mqbroker -c /home/rocketmq/rocketmq-4.7.1/conf/broker.conf

可以正常执行但是无任何输出，几个意思？检查日志吧

[root@docker logs]# pwd
/data/rocketmq/broker/logs
[root@docker logs]# ls -l
total 0

#容器内
[rocketmq@ff756bdbe93e logs]$ pwd
/home/rocketmq/logs
[rocketmq@ff756bdbe93e logs]$ ls -l
total 0

明明挂载了本地路径，为什么容器内外都无法生成日志呢，权限问题❓

[rocketmq@ff756bdbe93e ~]$ ls -lh
total 0
drwxr-xr-x 2 root     root      6 Feb  8 06:43 logs
drwxr-xr-x 1 rocketmq rocketmq 17 Jul 31  2021 rocketmq-4.7.1
drwxr-xr-x 2 root     root      6 Feb  8 06:43 store

[rocketmq@ff756bdbe93e conf]$ pwd
/home/rocketmq/rocketmq-4.7.1/conf
[rocketmq@ff756bdbe93e conf]$ ls -l
total 36
drwxr-xr-x 1 rocketmq rocketmq   118 Jun  2  2020 2m-2s-async
drwxr-xr-x 1 rocketmq rocketmq   118 Jun  2  2020 2m-2s-sync
drwxr-xr-x 1 rocketmq rocketmq    91 Jun  2  2020 2m-noslave
-rw-r--r-- 1 root     root       361 Jan 24 01:47 broker.conf
drwxr-xr-x 1 rocketmq rocketmq    72 Jun  2  2020 dledger
-rw-r--r-- 1 rocketmq rocketmq 14978 Jun  2  2020 logback_broker.xml
-rw-r--r-- 1 rocketmq rocketmq  3836 Jun  2  2020 logback_namesrv.xml
-rw-r--r-- 1 rocketmq rocketmq  3761 Jun  2  2020 logback_tools.xml
-rw-r--r-- 1 rocketmq rocketmq  1305 Jun  2  2020 plain_acl.yml
-rw-r--r-- 1 rocketmq rocketmq   834 Jun  2  2020 tools.yml

rocketmq的家目录是rocketmq属主/组的，并且配置目录下除了挂载的broker.conf其他文件也都是rocketmq属主/组。

已经很明确，就是权限问题导致的之前启动异常退出，以及手动调试时无报错情况。
3. 查看dockerfile确认权限问题
完整文件请看这里

...
#添加用户和组
7 ARG uid=3000
8 ARG gid=3000
9 |4 gid=3000 group=rocketmq uid=3000 user=rocketmq /bin/sh -c groupadd -g ${gid} ${group}     && useradd -u ${uid} -g ${gid} -m -s /bin/bash ${user}
...
#设置工作目录
12 ENV ROCKETMQ_HOME=/home/rocketmq/rocketmq-4.7.1
13 WORKDIR /home/rocketmq/rocketmq-4.7.1
...
#更改家目录的属主/组
16 |5 gid=3000 group=rocketmq uid=3000 user=rocketmq version=4.7.1 /bin/sh -c chown -R ${uid}:${gid} ${ROCKETMQ_HOME}
...

真相大白❗❗❗官方镜像设置了容器内运行用户为rocketmq,并修改了相关目录的权限。

修正错误

修改权限

[root@docker data]# chown -R 3000:3000 rocketmq/
[root@docker data]# ls -lh
total 12K
drwxr-xr-x 4    3000  3000   61 Feb  6 16:47 rocketmq

启动最初完整的docker compose

docker compose up

成功启动

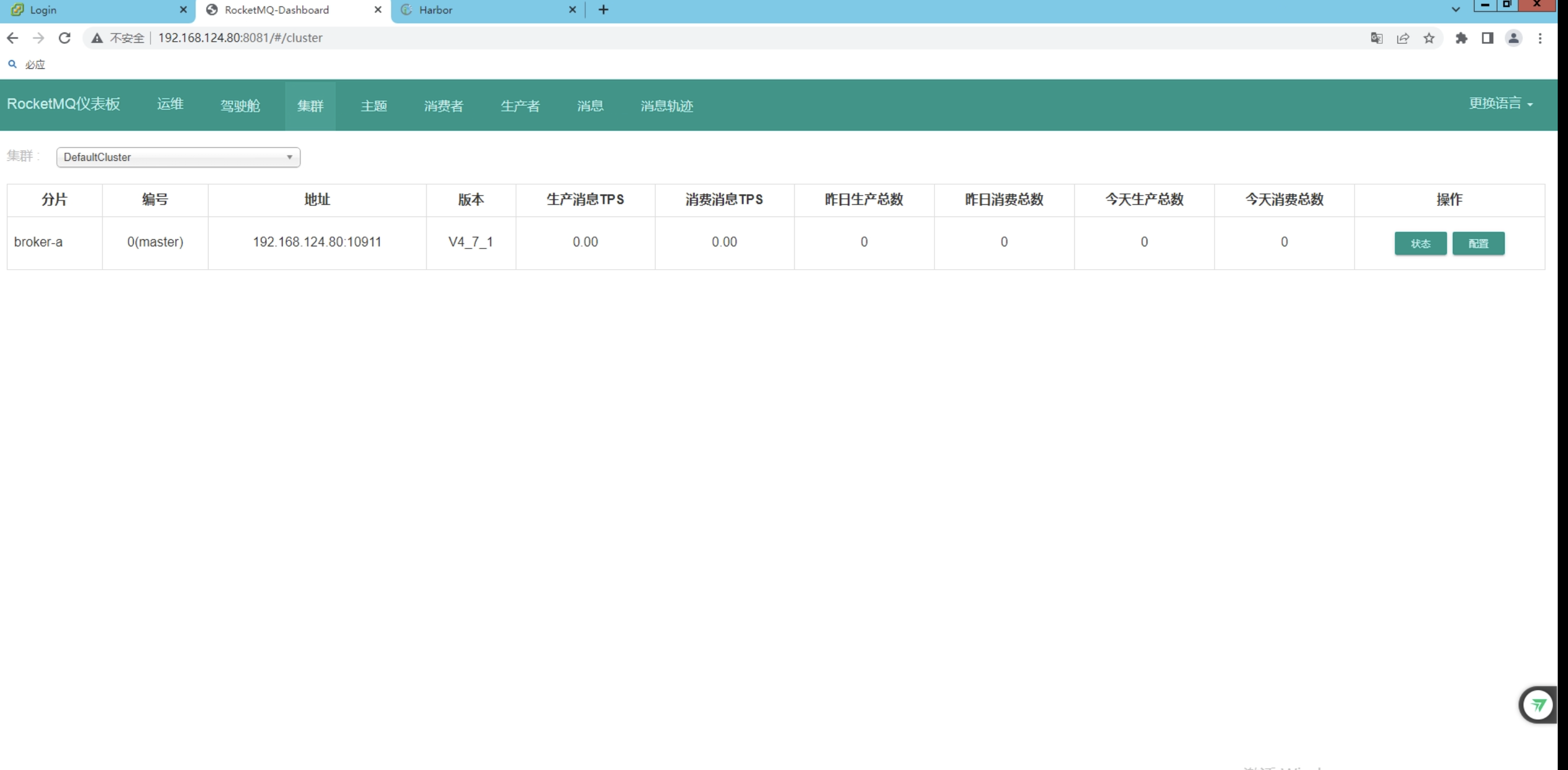

查看dashboard

测试功能

写个python测试

import json
from rocketmq.client import Producer, Message

producer = Producer('testGroup')
producer.set_name_server_address('192.168.124.80:9876')
producer.start()

msg = Message('testTopic')
msg_body = {"id":"test_id","name":"test_name","message":"test_message"}
ss = json.dumps(msg_body).encode('utf-8')
msg.set_body(ss)
producer.send_sync(msg)

producer.shutdown()
~

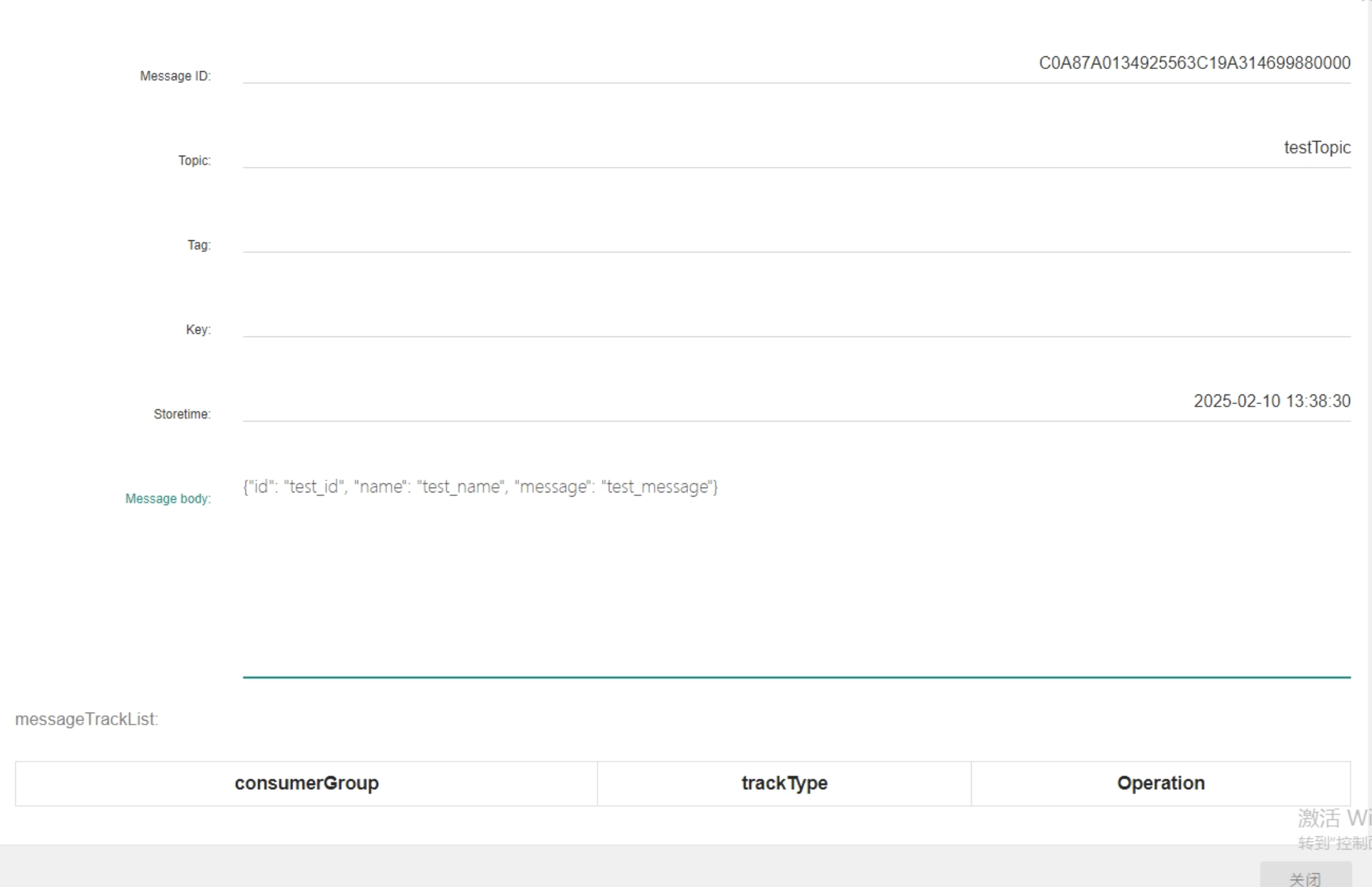

查看dashboard

风语者！平时喜欢研究各种技术，目前在从事后端开发工作，热爱生活、热爱工作。
